BLU-100

12x8 Signal Processor with BLU link

BLU-100
Larger Images

The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus.

The BLU-100 has open architecture which is fully configurable through HiQnet™ Audio Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.

This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

The BLU-100 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.

Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel.

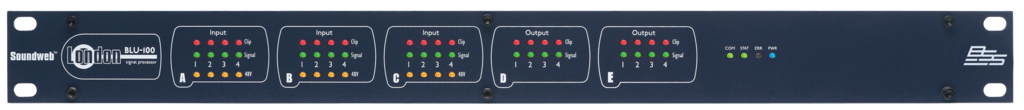

Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet Audio Architect.

12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet Audio Architect.

The BLU-100 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Features

  • 12 Analog Inputs (with 48v Phantom Power per Channel)
  • 8 Analog Outputs
  • Configurable Signal Processing
  • Rich Palette of Processing and Logic Objects
  • 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus
  • Clear Front Panel LED Indication
  • Bi-Directional Locate Functionality
  • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
  • Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
  • HiQnet Device
  • Configuration, Control and Monitoring from HiQnet Audio Architect

Downloads

  Version Language Size Uploaded
file type icon BLU-100 CAD files
en updated: Mar 2024
  en  3.08 MB Mar 2024
file type icon BLU-100 Cut Sheet-English
en updated: Mar 2024
  en  710 KB Mar 2024
file type icon BLU-100 Install Guide-English
en updated: Mar 2024
  en  1.07 MB Mar 2024
Brochures
file type icon Soundweb London Family Brochure
updated: Oct 2020
    1.3 MB Oct 2020
file type icon BLU 100 Series Brochure
updated: Aug 2015
    1.15 MB Aug 2015
file type icon BLU-100 Brochure
updated: Aug 2015
    1.02 MB Aug 2015
file type icon Pro Install Overview Brochure
en updated: Oct 2023
  en  23.1 MB Oct 2023
Software
platform icon HiQnet Audio Architect
version 2.55.2, updated: Feb 2024
2.55.2     Feb 2024
platform icon HiQnet Motion Control
updated: Nov 2016
    Nov 2016
platform icon HiQnet London Architect
version 6.02.R3, updated: Nov 2023
6.02.R3     117 MB Nov 2023
3rd Party Resources
file type icon Soundweb London Third Party Control Application Guide
updated: Sep 2016
    568 KB Sep 2016
file type icon Soundweb London DI Tool
updated: Oct 2015
    440 KB Oct 2015
file type icon Soundweb London DI Kit
updated: Oct 2015
    1.61 MB Oct 2015
file type icon AMX Soundweb London module v2.2
updated: Aug 2015
    1.75 MB Aug 2015
file type icon Crestron Series 4 Soundweb London module
version 1.4, updated: Feb 2023
1.4    41.6 MB Feb 2023
file type icon AMX HPro BSS Gateway Comm
version 1.0.15, updated: Jun 2021
1.0.15    25.1 MB Jun 2021
file type icon AMX BSS NetLinx Module
updated: Jun 2021
    5.03 MB Jun 2021
file type icon Crestron Soundweb London module v1.1
updated: Feb 2023
    35.4 MB Feb 2023
Application Guides
file type icon HARMAN Training Theater AV Solution for Business
updated: Dec 2015
    Dec 2015
file type icon HARMAN Auditorium AV Solution for Business
updated: Dec 2015
    Dec 2015

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.

Specifications

Chassis 19" (single rack space)
Custom I/O (card based) no
Analog Inputs 12
Digital Inputs 0
AEC Inputs 0
Analog Outputs 8
Digital Outputs 0
Telephone Connection 0
Max Inputs/Outputs fixed
Config Software
LCD Display no
Logic Processing yes
RS-232 yes
GPIO yes
Signal Processing (MHz) 400
Cobranet no
SWL Digital Audio Bus 48
AVB no
Dante no
